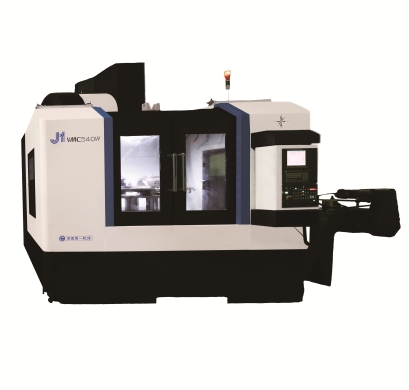

J1VMC540W Precision Vertical Machining Center

View:

High-speed, high-efficiency, high-precision, FANUC system. ?? J1VMC540W vertical machining center is Jinan No.1 Machine Tool Co., Ltd. to meet the needs of high-speed, high-efficiency, and precision vertical machining centers in the aerospace defense industry, IT industry, precision instruments, small and medium-sized cabinets, hubs, mold manufacturing and other machining industries. A newly developed high performance product. ?? Especially optimized for wheel hub machining, it has been put into production in large quantities and has won praise from customers.

J1VMC540W  Precision Vertical Machining Center

J1VMC 540H/W Vertical Machining Center Main Technical Specifications (Standard Configuration)

項目Item

J1VMC540H

J1VMC540W

工作臺面積(長x)mm×mmTable size(LxW)

1200×540

主軸鼻端至工作臺距離mm)Distance from spindle nose to table

150-660

350-1060

主軸最高轉速(r/minSpindle speed

80-8000

主軸電機(KWSpindle motor

β15( 15/18.5 kW)

α15( 15/18.5 kW)

主軸孔錐度Spindle taper

7/24

主軸中心至立柱軌面距離 mm)Distance From spindle center to column guide

597

刀庫容量Magazine storage

24

X/Y/Z移動范圍(mmTravel of X/Y/Z axis

1020/580/510

1020/580/710

X/Y/Z快速移動速度(m/min

Rapid traverse rate of X/Y/Z axis

36/36/30

數控系統CNC system

FANUC   0i-MF
